A – Raptor Rickshaw 3 Specification

  • Length with handle tilted 45 degrees: 63.0 inches/ 160cm
  • Width with main wheels (spoke wheels): 29.5 inches/ 75cm
  • Width with fat wheels: 39.4 inches/ 100cm
  • Height with handle tilted 45 degrees: 35.4 inches/ 90cm
  • Ground Clearance: 3.5 or 5.5 inches/ 9 or 14cm
  • Seat Height (Min – Max): 15.3 – 25.2 inches/ 39 – 64cm
  • Cheese Plate: 29×22 inches/ 74×56 cm
  • Caster Wheel: 10 inches/ 25.4cm
  • Main Wheel (Spoke Wheel) diameter: 21 inches/ 54cm
  • Fat Wheel (Optional accessories) diameter: 18 inches/ 45cm
  • Maximum Payload: 330lbs/ 150kgs

B – What’s in the box and how to install

1 – What’s in the box?

Package included with Main Wheels (Spoke wheels) and Small Seat. Here is the most concern from customers.

2 – Raptor Rickshaw 3 How to Install

To learn how to install the Raptor Rickshaw 3, download the [User Manual HERE]

3 – Assembling with Additional Accessories

Below are the assembly instructions for integrating additional accessories with your Raptor Rickshaw 3.

4 – Does the Raptor Rickshaw 3 come with a travel case?

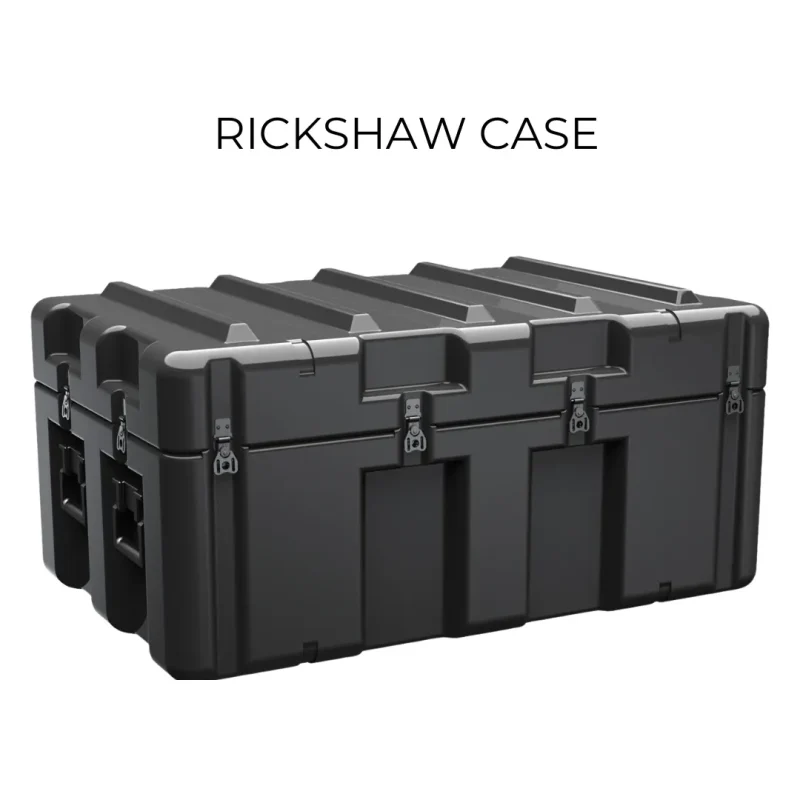

No, it does not. The travel case is an optional accessory. We offer two options: the Raptor Rickshaw Case and the Mini Rickshaw Case.

  • Raptor Rickshaw Case: Designed to accommodate the Raptor Rickshaw 3 along with Fat Wheels, the Seat Back, Universal Mounting Kit, Extension Handle, and a 2-inch Spacer, all securely stored in one box.

  • Mini Rickshaw Case: Ideal for carrying the Raptor Rickshaw 3 alone or the Fat Wheels along with smaller accessories.

5 – Can the ground clearance of the Raptor Rickshaw be adjusted?

Yes, the Raptor Rickshaw offers adjustable ground clearance with two modes: low mode at 9 cm and high mode at 14 cm. Updated from the Rickshaw 3, the low mode now requires a 2-inch spacer for operation.

Raptor Rickshaw 3 with various accessories supported

6 – How does the caster wheel function when changing ground clearance?

The caster wheel is equipped with a spacer (yellow component) that levels the cheese plate in low mode. When switching to high mode, the spacer is removed, allowing the cheese plate to remain leveled.

7 – Are there options to adjust wheel height or position?

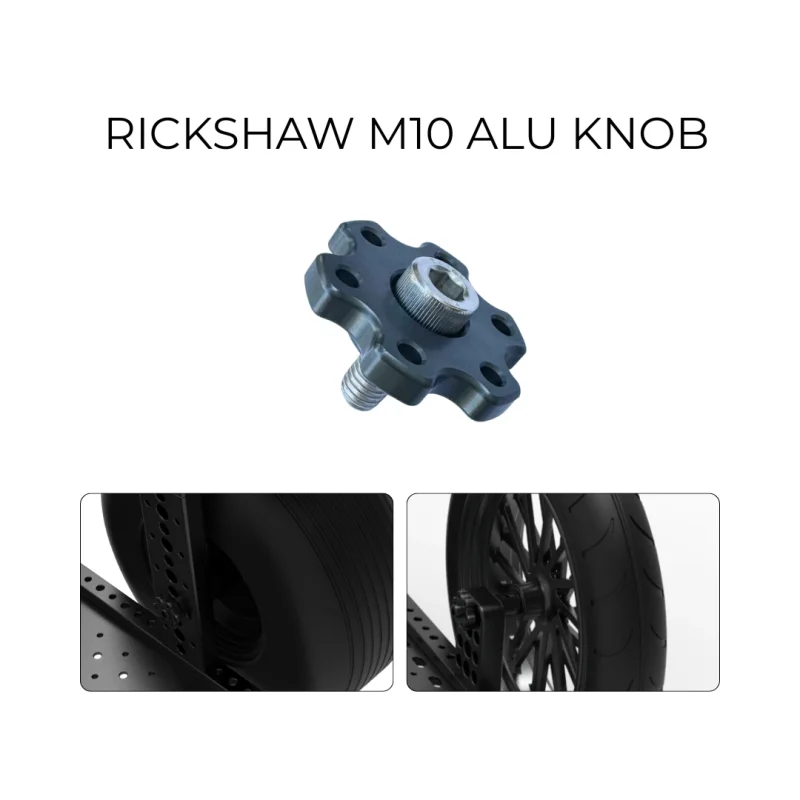

Yes, the wheels can be moved forward or backward as needed. The M10 mounting holes are spaced 40 mm apart, providing flexible positioning options.

C. Accessories List Support

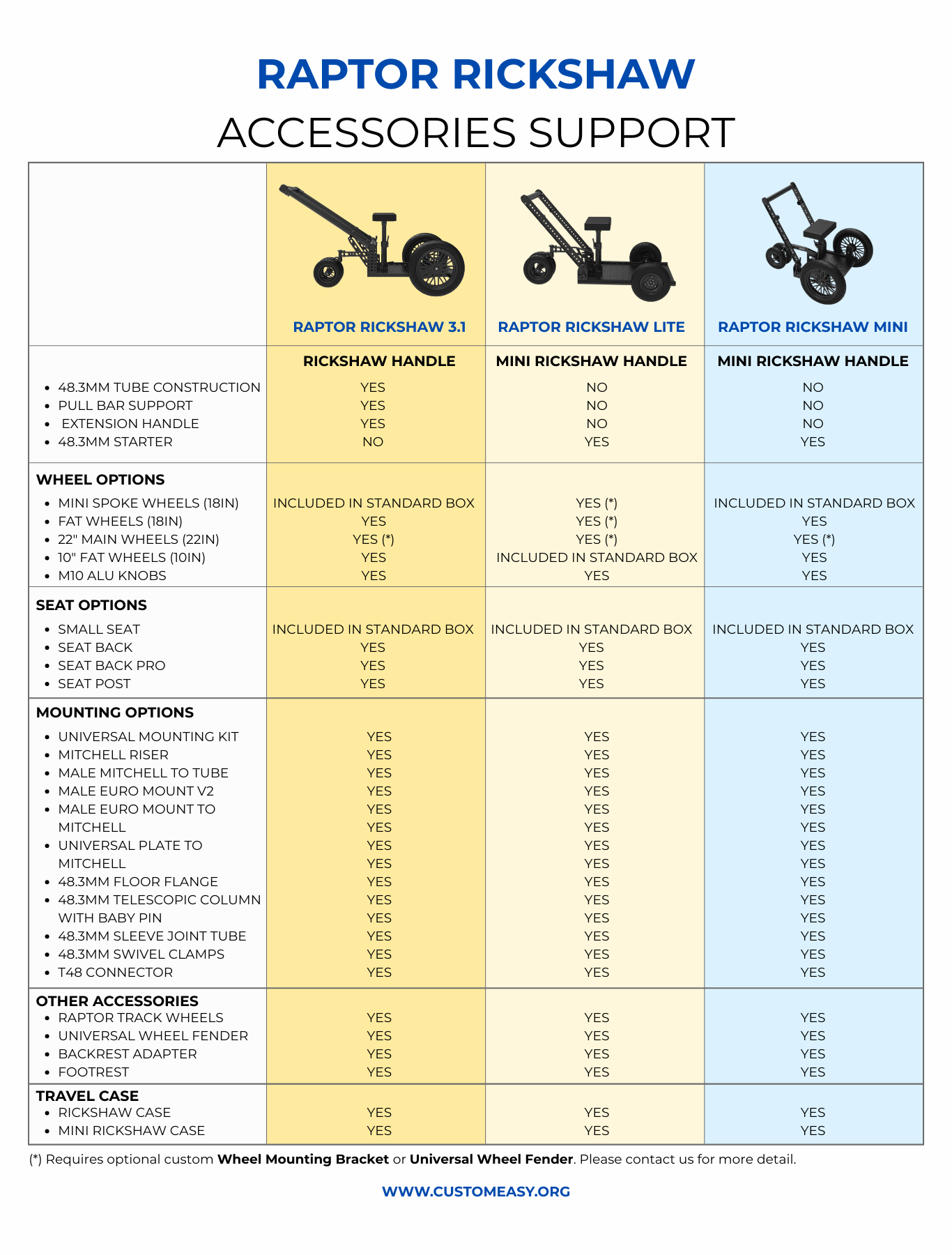

Raptor Rickshaw 3 is compatible with over 20 accessories. You can find an overview here.

For detailed guidance on using each accessory, please refer to our blog: Do You Know All the Accessories Compatible with the Raptor Rickshaw 3?

D. Some standout setups

1 – Working with a Steadicam Operator

When collaborating with Steadicam operators, users are often interested in convenient ways to install a hard mount for their Steadicam setups.

Option 1: Using Floor Flange
Connect a Floor Flange to any position on the Rickshaw Cheese Plate, then mount a scaffold.

Required components:

  • Floor Flange
  • Black Tube
  • Universal Mounting Kit

You can purchase these components individually or opt for the Universal Mount Kit, which includes all necessary parts.

Option 2: Using Mitchell Riser and Scaffold
Combine a Mitchell Riser, Mitchell-to-Tube adapter, and scaffold for a secure hard mount setup.

Required components:

  • Mitchell Riser
  • Mitchell to 48.3mm Tube
  • Black Tube
  • Extra Universal Plate to Mitchell

Users can mount the system directly onto the built-in Mitchell mount on the Rickshaw Cheese Plate or use the Universal Mount to Mitchell adapter to create a Mitchell mount anywhere on the plate.

Option 3: Using Mitchell to EURO Mount

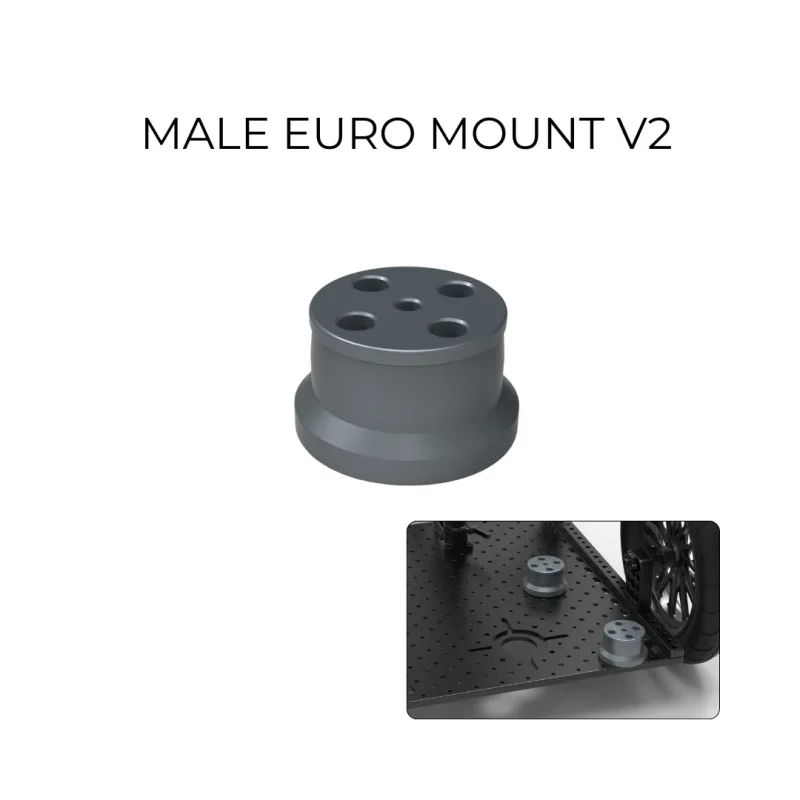

Instead of the Mitchell Riser, users can opt for a Mitchell-to-EURO mount, which pairs with a Bazooka for added versatility.

Required component:

  • Male Euro to Mitchell

2 – Working with a Camera Operator

A secure and comfortable seat is essential for camera operators, ensuring they can focus on achieving the perfect shot.

Option 1: Seat Back
The Seat Back includes a built-in seatbelt for added security, providing reliable support during operations.

Option 2: Seat Back Pro
For those needing a taller backrest, the Seat Back Pro is available.

Explore more about our customized Rickshaw accessories [HERE].

Common setups for camera operators on the Raptor Rickshaw 3 include:

  • Classic seated operation.

  • Standing operation using a backrest adapter and a small seat (included in the Raptor Rickshaw 3 package).

  • Mounting the camera on a third-party device like a Mitchell Riser or Slider.

3 – Working with a Gimbal Operator

Check out the Raptor Rickshaw 3 – Gimbal Set ($6,299.00) for gimbal setups.

4 – Combining with a Shock Absorbing Arm

Supported by the Universal Mounting Kit.

5. Using with a Mini Jib or Crane

Use a Male Euro to Mitchell Adapter paired with a Bazooka to mount a Mini Jib or Crane.

6. Dolly Track

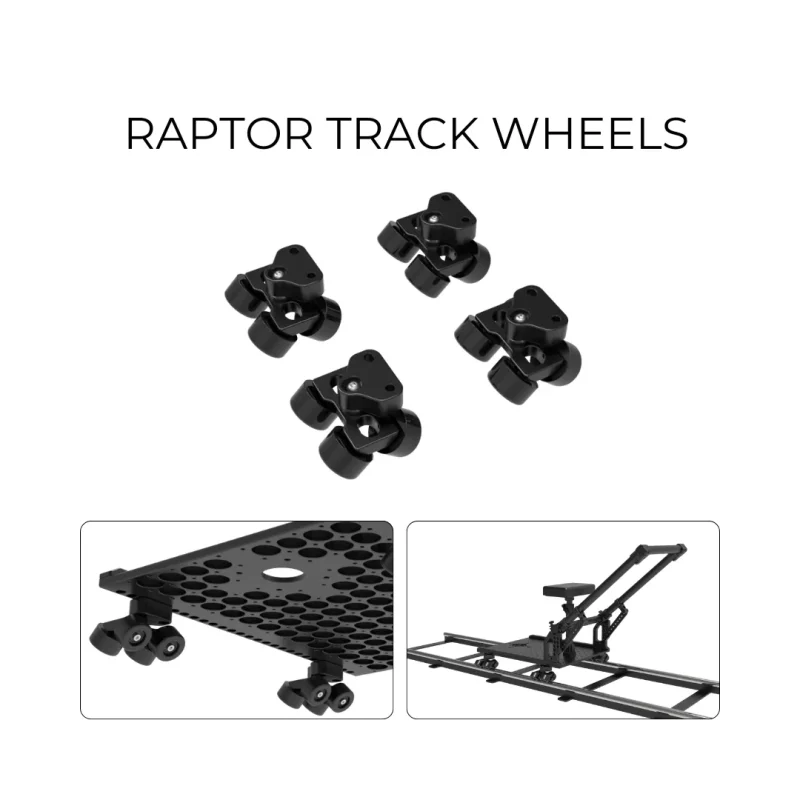

Equip the Raptor Rickshaw 3 with Track Wheels for smooth movement on dolly tracks.

7. Custom Camera Setups

Thanks to the built-in Mitchell mount and matrix holes on the Rickshaw Cheese Plate, filmmakers have countless options for mounting cameras or other equipment to achieve unique setups tailored to the director’s vision.

Follow our Instagram @custommadeeasy for more inspiration.

E. Special Use Cases

1 – Moving in a Studio

For studio environments, most camera operators prefer using Main Wheels. Drew Theiss (@bionicsteadiops) offers tips on getting the Rickshaw onto the set without scuffing the floor.

2. Spinning with the Raptor Rickshaw 3
See how SteadiHan creates spinning shots for inspiration.

3. Ice Skating
Joz Johann Guehennec shares:
“I initially used hockey pucks, which worked well, but they tended to stick to the ice at first. Switching back to wheels solved this issue. Keeping the wheels clean is crucial to avoid dirtying the ice. For snow, I integrated the system into a sled, and it worked perfectly.”

Rickshaw dolly ice skating

4. Rough Terrain or Grass
Switch from Main Wheels to Fat Wheels for smoother shots on uneven surfaces.

5. Running with the Raptor Rickshaw 3
Choose to block the caster wheels or remove them entirely for fast movements. For longer push bars that allow two key grips to maneuver, use a longer 48.3mm tube or connect two Black Tubes with a Sleeve Joint Tube.

For more unique setups, follow us on Instagram @custommadeeasy for the latest tips and tricks!

F. What are the differences between Raptor Rickshaw versions

1 – What are the differences between Raptor Rickshaw versions?

While the core functions remain similar across Raptor Rickshaw versions, there are significant structural differences, such as tube sizes and caster wheel dimensions. These differences make it impossible to mix components between Raptor Rickshaw 1, 2, or 3.

Here are the key distinctions:

  • Between Raptor Rickshaw 1 & 2:
    Both versions use the same 50mm tubes. However, Raptor Rickshaw 2 features larger caster wheels, upgraded from 8 inches in the first version to 10 inches, and includes built-in wheel locks. Additionally, version 2 supports a Mitchell mount on the Cheese Plate, a feature missing from the first version.
  • Between Raptor Rickshaw 1/2 and 3:
    Raptor Rickshaw 3 introduces a complete shift to 48.3mm (1 1/2″) tube size. It also adds a pull bar while retaining the updated features of version 2, such as the enhanced Cheese Plate and upgraded caster wheels.

2 – Can I upgrade my Raptor Rickshaw 1 or 2 to version 3?

Upgrading components from Raptor Rickshaw 1 or 2 to version 3 is not straightforward due to structural differences. However, you may consider updating individual features or accessories.

  • New Pull Bar
    • Price: $299.00
    • Lead time: 10 days
  • Mitchell Cheese Plate or Universal Plate to Mitchell Adapter

    • Compatible with R1/2

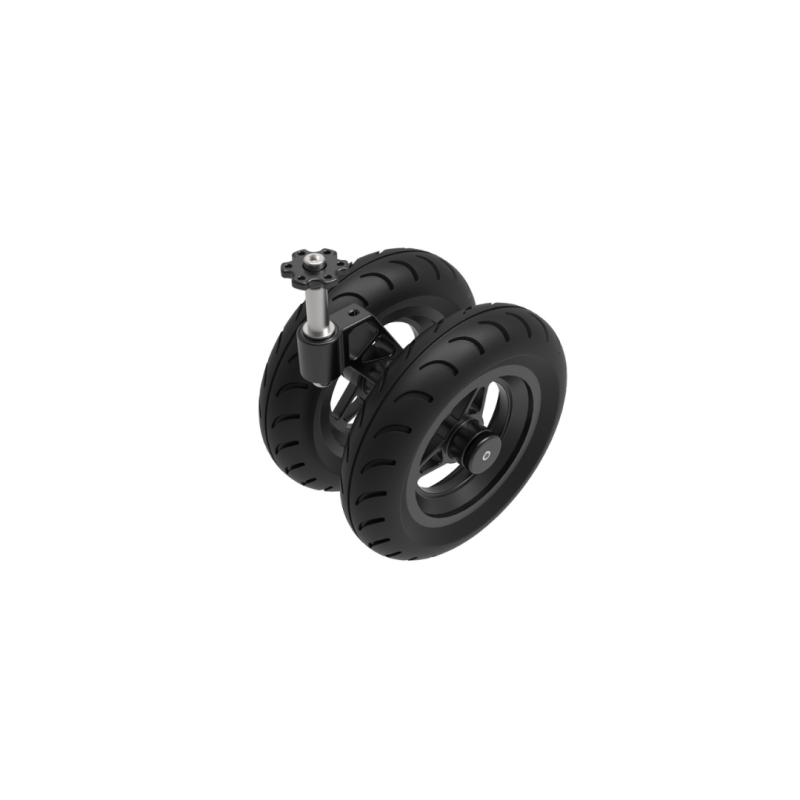

  • New Caster Wheels

    • Price: $695.00
    • Compatibility: Version 1 only
    • Lead time: 10 days

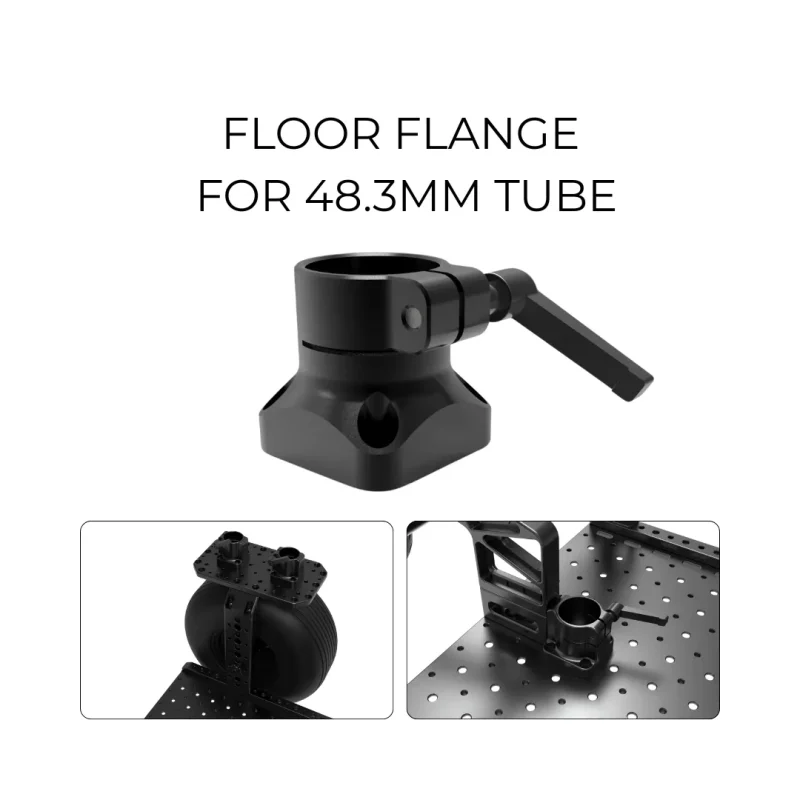

  • Floor Flange for 48.3mm Tube

    • Price: $99.00
    • Availability: Please email us to confirm stock. If unavailable, lead time is 10 days.

3 – Compatibility of R3 Accessories with Rickshaw 1/2

  • Universal Mounting Kit:
    Compatible with Rickshaw 1/2. Choose the option with 48–51mm Dual Clamps and note your Rickshaw version in the order comments. We will adjust the Floor Flange to fit your model.

  • Raptor Hard Mount or Backrest Adapter:
    These are also compatible with Rickshaw 1/2.

  • Fat Wheels and Seat Back:
    The mounting dimensions remain unchanged, ensuring seamless compatibility.

Let me know if you’d like further refinements!

G. Maintenance

You can clean the vehicle with water and then spray Selleys RP7 or WD40 Multi-use product on moving positions such as wheel axles and bearings to lubricate and prevent rust.

H. Delivery

1 – When will I receive Raptor Rickshaw if I order now?

If it is available, we can ship within 1 – 2 working days after payment is confirmed. Please check the lead-time at store link or email us at contact@customeasy.org for to update the current stock.

2 –  Where does the product ship?

Products are made and delivered from Ho Chi Minh City of Vietnam.
