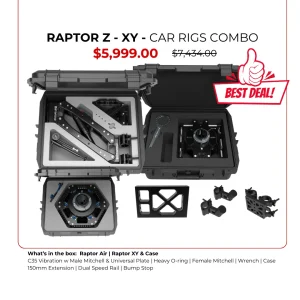

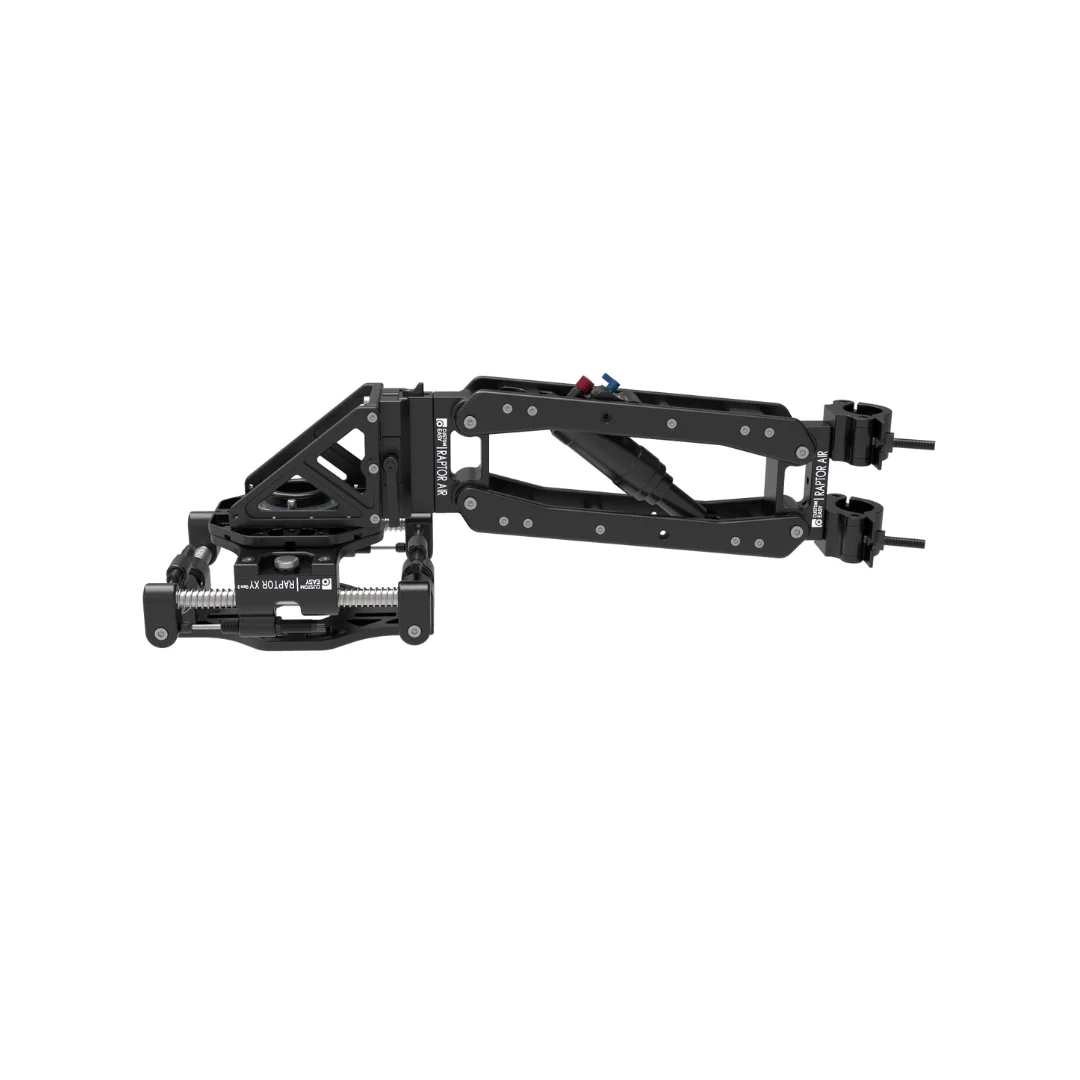

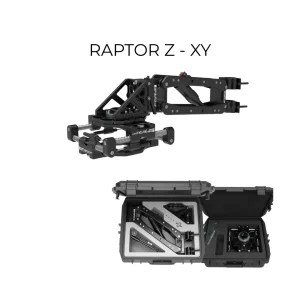

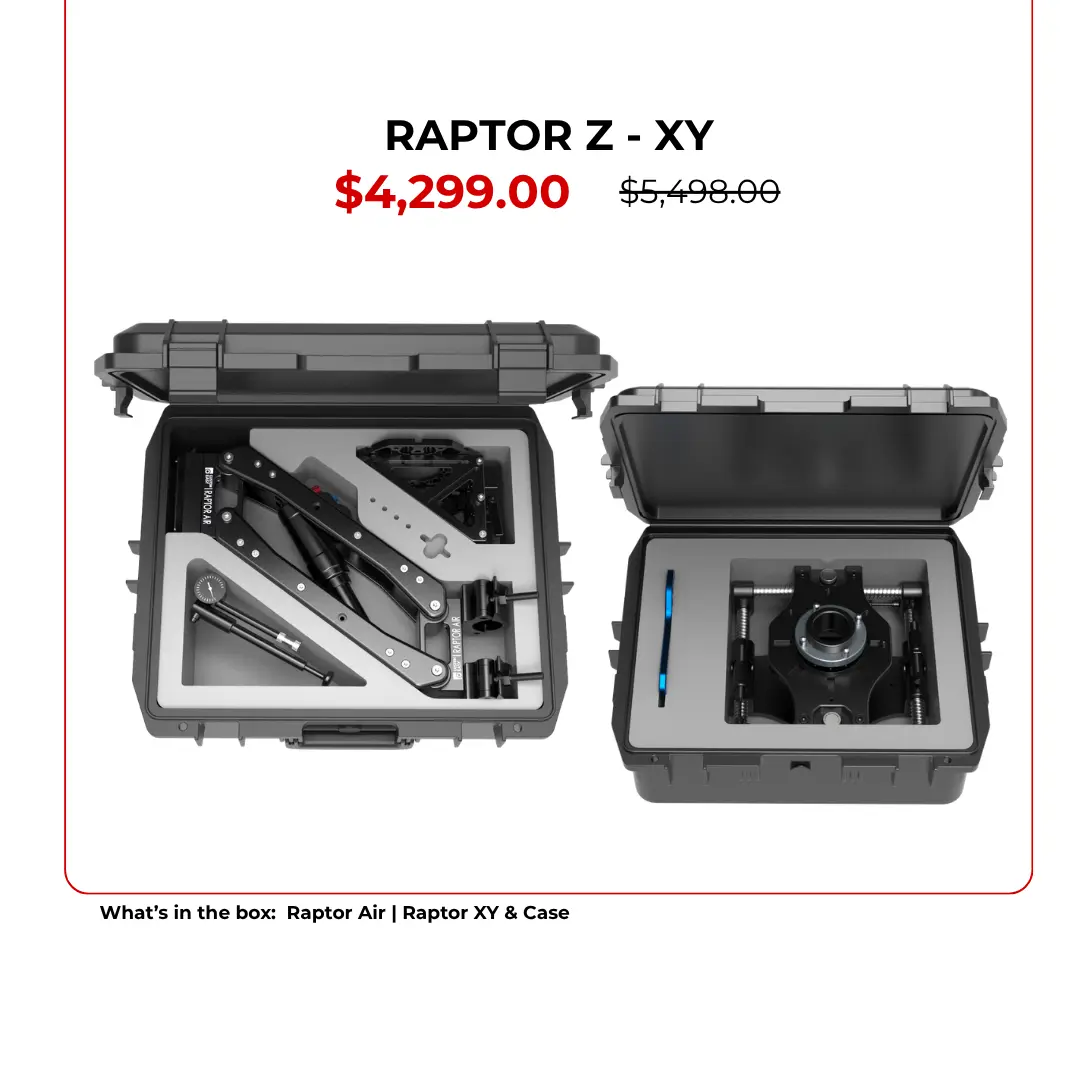

Raptor Z – Raptor XY Combo

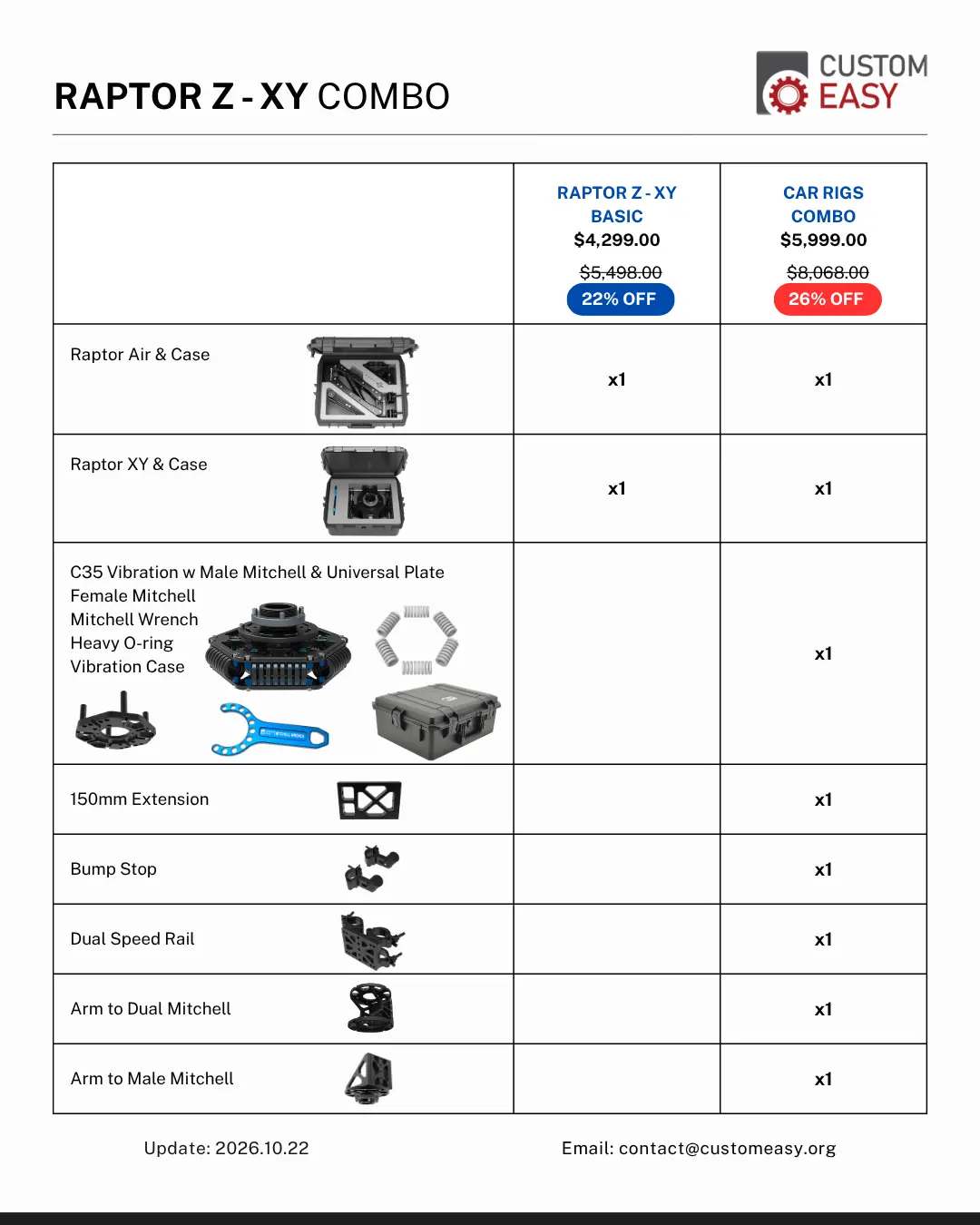

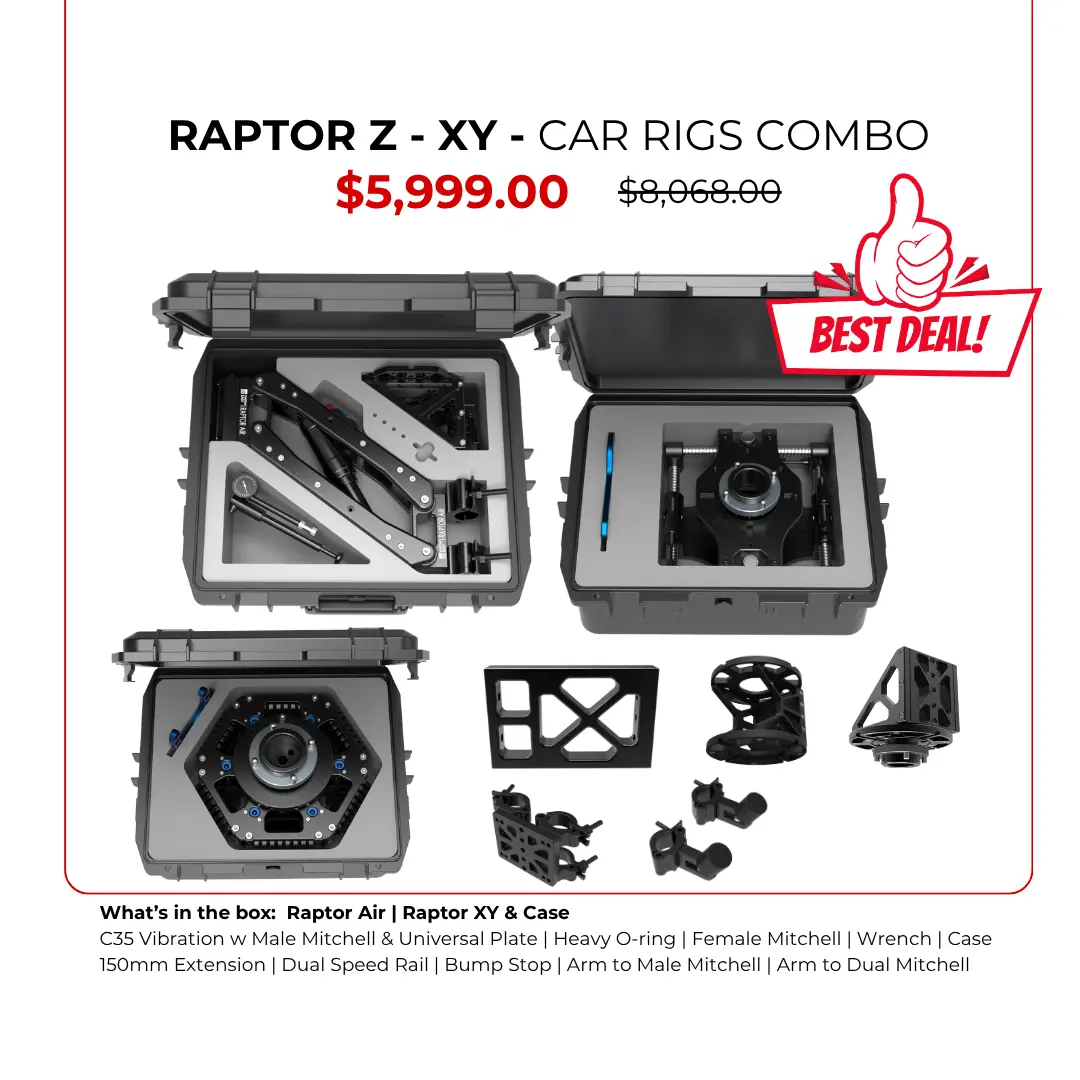

The combo includes
- Raptor Z arm with heavy springs configuration will accommodate payloads of 10-30kg (22-66lbs), making it suitable for Remote Pan Tilt heads and any 3-Axis Gimbal system like DJI Ronin 2, Freefly Movi Pro, Movi XL or Shotover G1.
It is custom-designed to remove High-Frequency Vibrations & Dampens Low-Frequency Oscillations when shooting from moving platforms on rough terrain or paved roads. A finely balanced system of adjustable springs and hydraulic dampers give you a stable platform to achieve perfect results.
- Raptor XY absorbs pulsations in the X and Y horizontal axis. Smoother shots without disturbing vibrations are the result.
- Provides Ultra-Smooth Stabilized Shots when Shooting At Any Speed On/Off Road, On Water
- Set-up is Quick & Easy, No Technician Required
- Adjustment for different equipment weight
- Install ability on the one tube and quick mount by applying 2 aluminium clamps (diameter tube is 45-52 mm)
- Interchangeable Mitchell base mounts
- Overslung and underslung operation
- Provide best performance with vibration isolator (15kgs Vibration or 25kgs vibration)
- Raptor Z Arm Payload:
- Single Spring Set : 10 – 20 kgs/22 – 44 lbs
- Heavy Springs Set : 20 – 30 kgs/ 44 – 66 lbs (default package)
- Lift range: 56cm
- Product Weight: 8.3kg /18.2lbs
- Dimensions (L x W x H) : 45 x 55 x 20 cm
