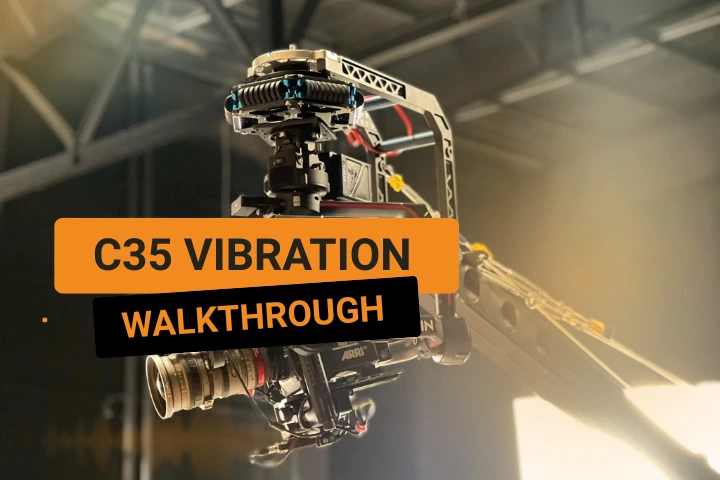

C35 Vibration Walkthrough: Step-by-Step Setup Guide

09
Sep

The C35 Vibration Isolator is designed to give you smoother shots by reducing unwanted vibrations across a wide range of payloads and camera rigs. In this walkthrough, we’ll guide you step by step through the setup process so you can get the most out of your system.

Step 1: Configure the O-Rings for Your Payload

The first step is all about balancing your payload with the right O-rings.

  • Standard setup: Out of the box, the C35 Vibration comes with 48 black standard O-rings. This configuration works perfectly with the DJI Ronin 2 and its typical camera packages.

  • Movi Pro users: Start with 24 O-rings, mounted symmetrically. From there, you can fine-tune the number of O-rings to match your specific payload.

  • Heavy payloads (20kg+): For larger rigs, switch from the black O-rings to the heavy-duty grey O-rings. This setup is often used with systems such as the Movi XL, ARRI 360 EVO, Shotover G1, or the Titan LF.

The key here is to balance your camera weight with the right tension to ensure optimal isolation and stability.

Step 2: Mount Your Payload

You’ve got two straightforward mounting options with the C35 Vibration:

  • Universal Plate (default option): Directly compatible with the DJI Ronin 2 Universal Plate and the Movi Pro. Simply mount and you’re good to go.

  • Mitchell mount: If you prefer a Mitchell-based setup, just follow our detailed guide for step-by-step instructions via video.

Both mounting options make it quick and easy to integrate the C35 into your existing rig.

Step 3: Attach the C35 Vibration to Your Cinema Rig

The final step is connecting the isolator to your shooting platform.

  • On dollies, cranes, or shock-absorbing arms: Mount the C35 Vibration via the Mitchell base as usual.

  • On under-arm cars (like the Motocrane Radical Arm): Remove the male Mitchell and mount it to the Head Adapter using M6x16 screws for a secure fit.

And that’s it — your C35 Vibration is fully set up and ready to deliver smoother shots with your payload.

Need More Details?

If you have questions or want to explore advanced configurations, feel free to reach out at contact@customeasy.org. Our team is here to help you get the best performance from your C35 system.
